WALL COVERINGS - TEC 317-R

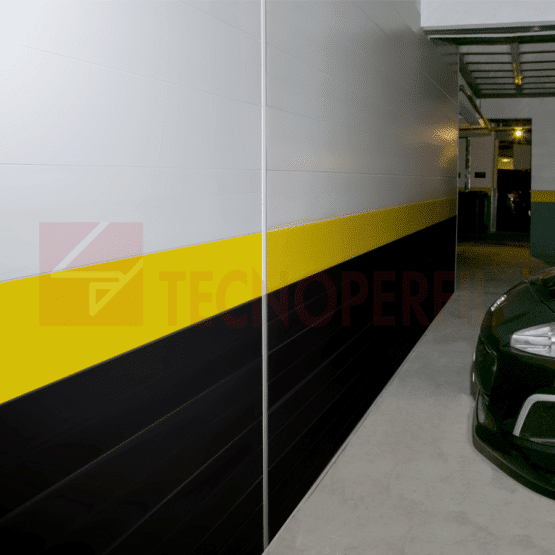

Wall coverings, widely used in underground parking lots and garages, retrofit and shafts

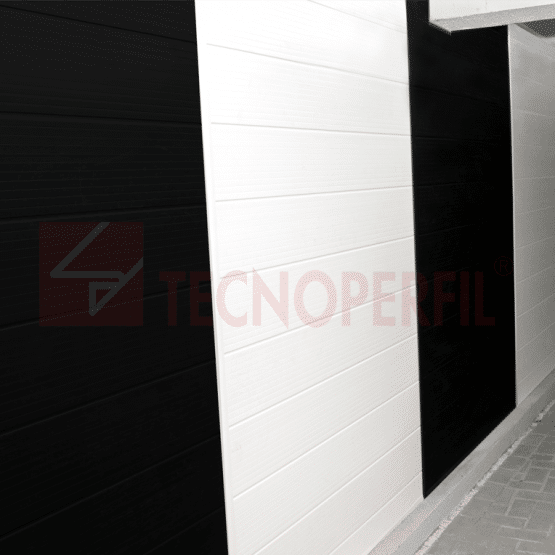

Tecnoperfil´s wall coverings provide quick and economical solutions for an excellent finish on indoor walls, especially garages, parking lots, homes and offices. They prevent the appearance of stains due to possible infiltration and are easy to clean.
Made of flameproof PVC, the Wall coverings meet the limits of the optical density of smoke, required by fire brigades.
Get to know Plastilon as well
Resistance to humidity: It can be wetted or cleaned with water, a benefit when compared to the various options available on the market that are “enemies of water”. Since it does not absorb moisture, it also does not mold.
Eliminates the need to be Painted: There is no need for any maintenance or painting expenses. Just another important advantage that sets the Wall Coverings apart from the solutions that existed until now.
Does not propagate flames: Made of hard PVC, which does not propagate flames, ensuring greater safety.
Termite Proof: As it is made of hard PVC, it does not attract and does not allow termites to invade.
Easy maintenance: Whenever it is necessary to inspect inside the covering, for any maintenance or repairs, just dismantle the covering and reassemble them later. Cleaning is also easier.
Quick assembly: The easy fit between the covering allows for quick assembly.
It does not generate debris: The system is assembled by fittings and, therefore, there is no need to break walls and thus no undesirable debris in any construction process is generated.

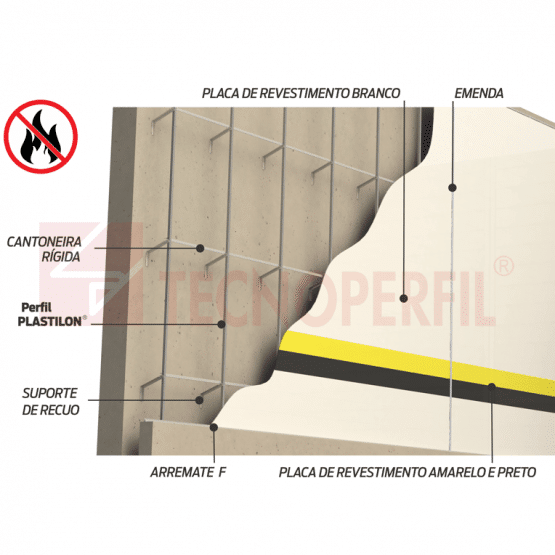

Tecnoperfil has and recommends the following accessories to install the structure where the wall coverings will be fixed:
Indentation Supports: Formed by Tecnoperfil´s Corner Guards, they are used to separate the wall coverings from the original wall, in case repairs are needed, as, for example, in case of infiltration of the original wall. These indentation supports must be attached to the support structure.
Support brackets: Formed by Tecnoperfil´s Plastilon, fixed on the indentation supports.
Finishing Structure: Formed by simple U-type Ends, fixed to the Plastilon support brackets, where the Wall coverings will be fitted.
Made of hard PVC, they have a male-female fitting on the sides, to fix them together.
Available in Snow White 154, Yellow 301 and Black 905. Covering dimensions: 200 x 7 mm; Length: 6m; Weight: 1.55 Kg/m2;
U End
Dimensions: 30 x 13 mm
Weight: 85 g/m
Pieces with 6.0 m
7 mm Joint
Dimensions: 59 x 11 mm
Weight: 170 g/m
Pieces with 6.0 m
Multifunctional
Dimensions: 85 x 11.6 mm
Weight: 310 g/m
Pieces with 6.0 m
